Fluidized Bed Dryer

Principles of Fluidized Bed Dryer

• The Fluidized Bed Dryer operates on the principle of fluidization, where hot air is passed through a perforated bed of wet solids, causing the solids to behave like a fluid.

• This enhances the contact between the hot air and the material, leading to efficient drying.

Construction

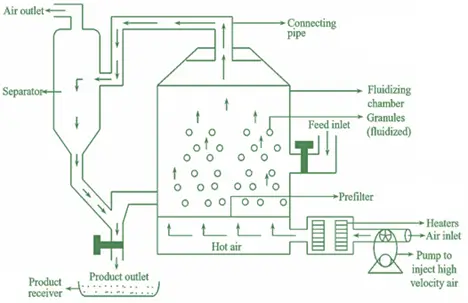

Fluidized Bed Dryer

1. Drying Chamber: A vertical chamber with a perforated or mesh bottom.

2. Blower/Fan: Forces hot air up through the bottom.

3. Heating System: Heats the air before it enters the chamber.

4. Filters: Prevent particles from escaping with the exhaust air.

5. Exhaust System: Removes moist air from the chamber.

Working

1. Loading: Material is placed on the perforated bottom.

2. Fluidization: Hot air is forced up through the bottom, causing the material to become suspended and fluidized.

3. Drying: Heat from the air causes moisture to evaporate from the material.

4. Exhaust: Moist air is exhausted from the chamber, often passing through filters to capture any entrained particles.

5. Unloading: Dried material is collected and removed from the chamber.

Uses

• Drying pharmaceuticals, chemicals, food products, and granules

Merits

• Fast Drying: High heat and mass transfer rates.

• Uniform Drying: Consistent drying throughout the material.

• Efficiency: Effective for heat-sensitive materials due to lower temperatures.

Demerits

• Particle Size Limitation: Not suitable for very fine or very large particles.

• Energy Consumption: Can be energy intensive.

• Initial Cost: Higher initial investment compared to other dryers.
