Rate of Drying Curve

  • The "rate of drying curve" is a graphical representation used in drying processes to illustrate how the moisture content in a material change over time.

  • This curve is important in various industries such as food processing, pharmaceuticals, and materials science for optimizing drying techniques and understanding the kinetics of moisture removal.

It includes several key phases:

  1. Initial Rate Period: Moisture evaporates freely from the material's saturated surface at a high, constant rate.

  2. Constant Rate Period: The drying rate stays constant as long as the surface remains saturated.

  3. Falling Rate Period: The rate declines as moisture must move from inside the material to the surface before evaporating.

  4. Equilibrium Period: Drying ceases when moisture content stabilizes at an equilibrium with the environment.

This curve is crucial in various industries for optimizing drying processes and ensuring product quality.

Phases on the Graph of Rate of Drying Curve:

  1. Initial Rate Period: A steep line representing a high, constant drying rate.

  2. Constant Rate Period: A horizontal line showing the drying rate remains unchanged.

  3. Falling Rate Period: A downward-sloping line indicating a decreasing drying rate as moisture diffusion becomes the limiting factor.

  4. Equilibrium Period: The line approaches the x-axis, showing almost no drying as the material reaches moisture equilibrium with the environment.

Let's create this graph to visualize these phases.

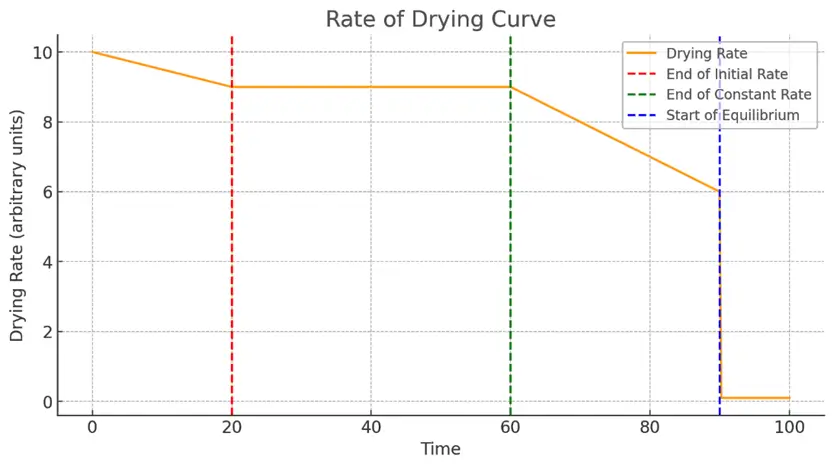

Rate of Drying Curve

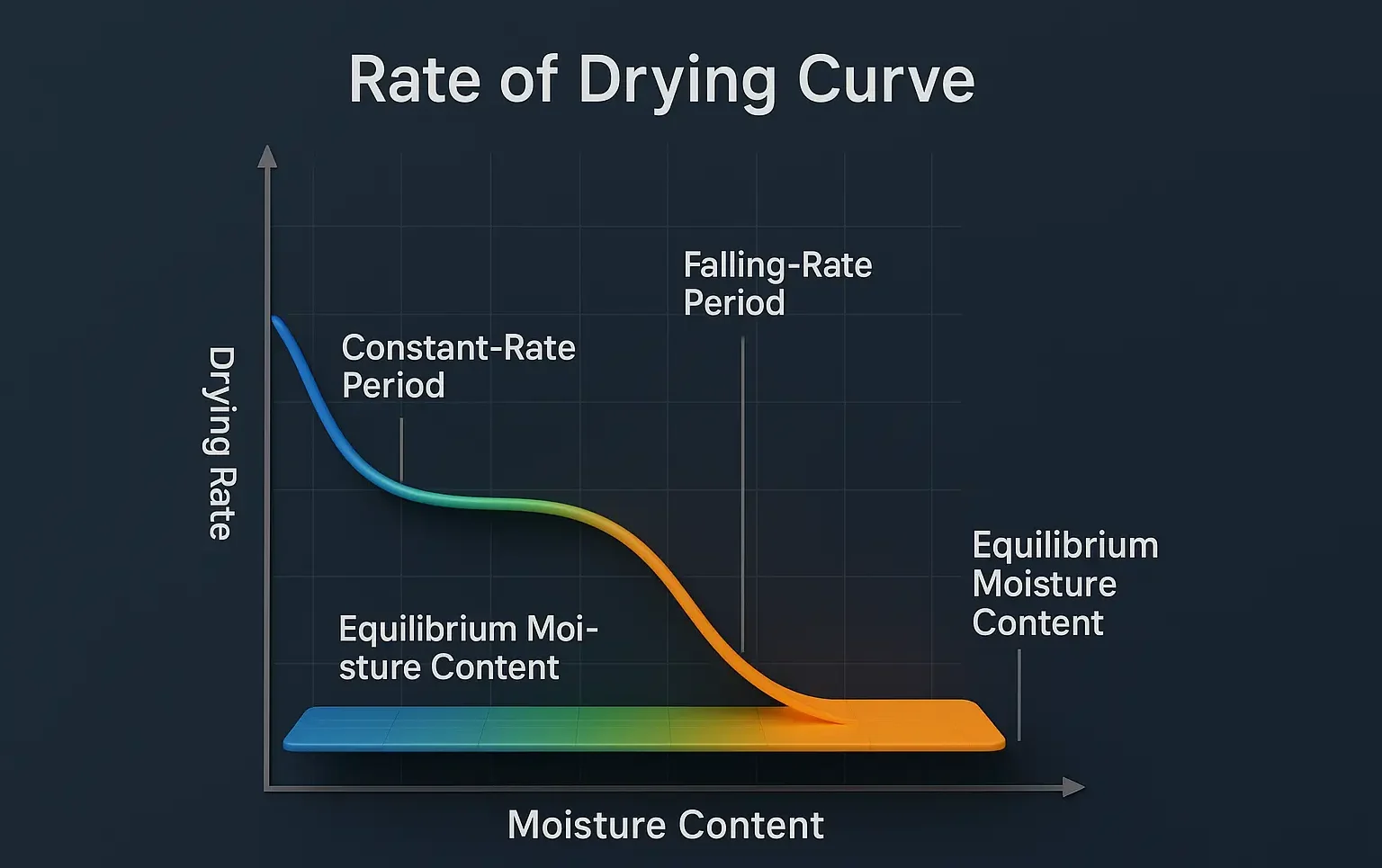

Rate of Drying Curve

The graph above visualizes the rate of drying curve, showing how the drying rate of a material changes over time through different phases:

1) Initial Rate Period (steep decline):

  • Starts with a high drying rate as moisture freely evaporates from a saturated surface.

2) Constant Rate Period (horizontal line):

  • The drying rate remains constant, indicating that the surface is still saturated with moisture.

3) Falling Rate Period (downward slope):

  • The rate decreases as moisture must diffuse from inside the material to the surface before evaporating.

4) Equilibrium Period (approaches zero):

  • Drying rate drops close to zero as the material's moisture reaches equilibrium with the surrounding environment.
