Vacuum Dryer

Principles Vacuum Dryer

• A vacuum dryer operates on the principle of reducing the pressure around the material to be dried, which lowers the boiling point of water and other solvents.

• This allows drying at lower temperatures, which is advantageous for heat-sensitive materials.

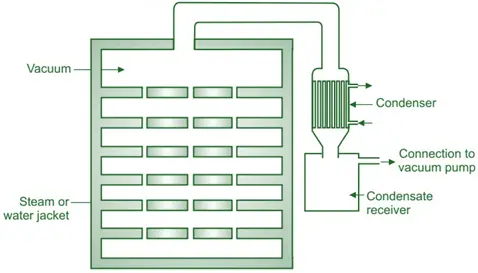

Construction

Vacuum Dryer

1. Vacuum Chamber: An airtight chamber capable of withstanding reduced pressure.

2. Shelves/Trays: Hold the material to be dried.

3. Vacuum Pump: Removes air and reduces pressure inside the chamber.

4. Heating System: Heats the material via conduction, convection, or radiation.

5. Condensers/Traps: Capture and condense evaporated moisture.

Working

1. Loading: Material is placed on shelves or trays inside the chamber.

2. Sealing: The chamber is sealed airtight.

3. Vacuum Application: Air is removed to create a vacuum, lowering the boiling point of moisture.

4. Heating: Heat is applied to the material, causing moisture to evaporate at lower temperatures.

5. Condensation: Evaporated moisture is captured and condensed.

6. Unloading: The dried material is removed from the chamber.

Uses

• Drying heat-sensitive pharmaceuticals, chemicals, and food products.

Merits

• Gentle Drying: Suitable for heat-sensitive materials.

• High Quality: Maintains the integrity and quality of the dried product.

• Efficient: Effective for materials that degrade at high temperatures.

Demerits

• Slow Process: Can be slower compared to other drying methods.

• High Cost: Expensive equipment and operation.

• Complexity: Requires careful control and maintenance.
