Instrumentation in Gas Chromatography

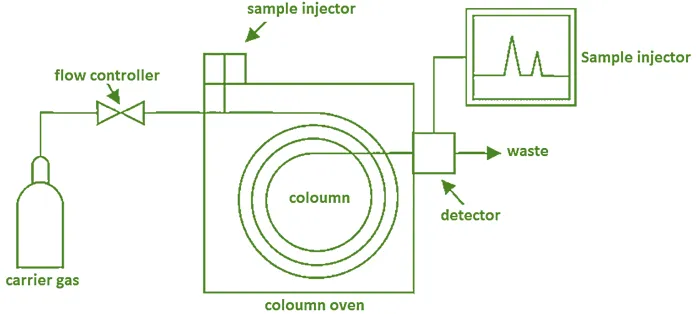

Instrumentation in Gas Chromatography includes injector, column, detector, and data system for separating and analyzing volatile compounds.

Sample Introduction System
- Injection Port: Heated port for sample introduction and vaporization.
- Auto-samplers: Automates sample introduction for precision and high throughput.
Mobile Phase (Carrier Gas) System
- Carrier Gas Cylinder: Supplies inert gas (helium, hydrogen, or nitrogen).
- Pressure Regulators and Flow Controllers: Maintain constant flow rate and desired pressure.
Columns
- Packed Columns: Wider columns with solid stationary phase (used in older systems).
- Capillary Columns: Narrow columns with stationary phase coated on walls, offering higher efficiency.
Oven
- Provides temperature control for the column.
- Operates at constant or programmed temperatures for improved separation.
Detectors
- Flame Ionization Detector (FID): Measures ions from sample combustion.
- Thermal Conductivity Detector (TCD): Detects changes in thermal conductivity.
- Electron Capture Detector (ECD): Sensitive to halogenated compounds.
- Mass Spectrometer (MS): Identifies compounds by mass-to-charge ratio.
Data Handling System
- Computer interface for instrument control, data acquisition, and analysis.
- Software aids in peak identification, integration, quantification, and reporting.
Additional Components
- Split/Splitless Injector: Allows partial or full sample introduction.
- Backflush System: Reverses flow to remove heavy or unwanted materials after analysis.
